Enduro Frame Only

Stealth Enduro Frame Complete
Frame ONLY!

• Steel bicycle frame for 3000w -12000w electric mountain bike. Suitable for most wheel sizes：26/24/21/19 inch
• Includes:  frame body, saddle bracket, controller box, battery casing，head tube，cover，rear flat fork (including bottom bracket) bolts and washers for assembling
• Durability Material: Iron Steel (thickness 2mm) with high quality  anti-scratch glossy paint.
• Net weight of the whole kit: 23KG.
• First choice for assembling electric Bicycle DIY Kit：anti-rust treatment inside and outside the steel pipe, longer service life; robot welding, more stable quality

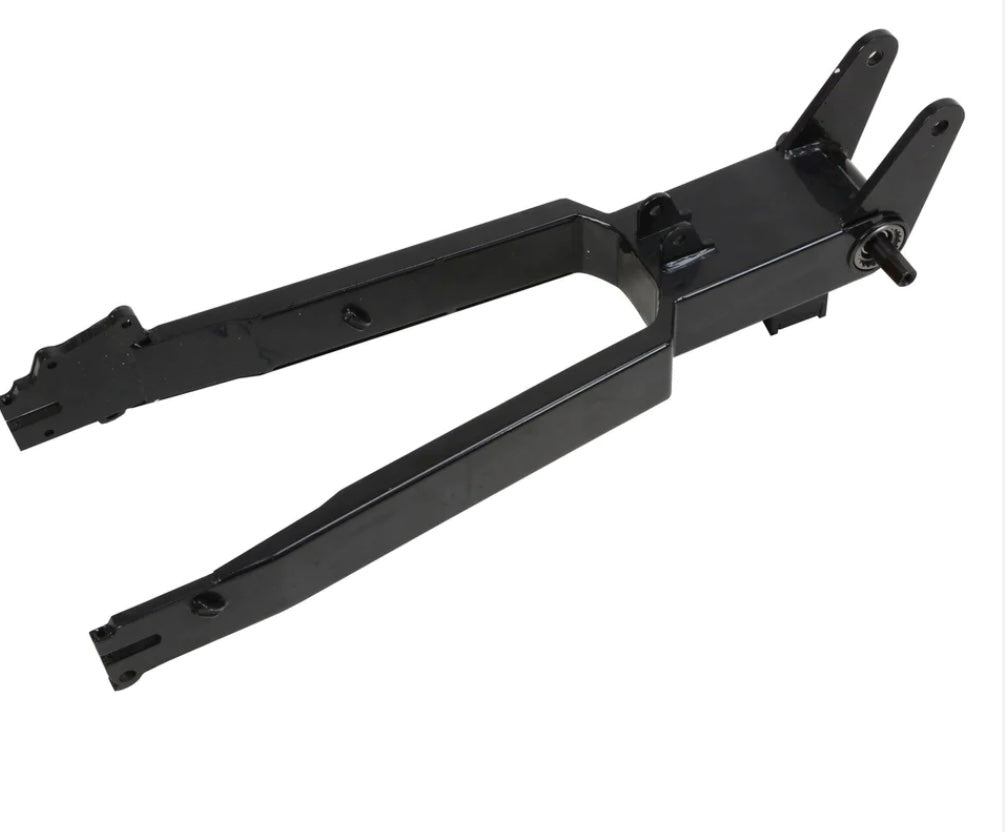

• Rear shock: Width 24mm,200mm spacing are suitable. The top mounting of the shock absorber has several positions, which provides an opportunity to use shock absorbers of different lengths and stroke.

 Material : steel frame and plastic cover which is using high quality strong 4mm ABS+PMMA anti-scratch glossy plastic.
Very strong steel frame: t=2 mm

Package Include

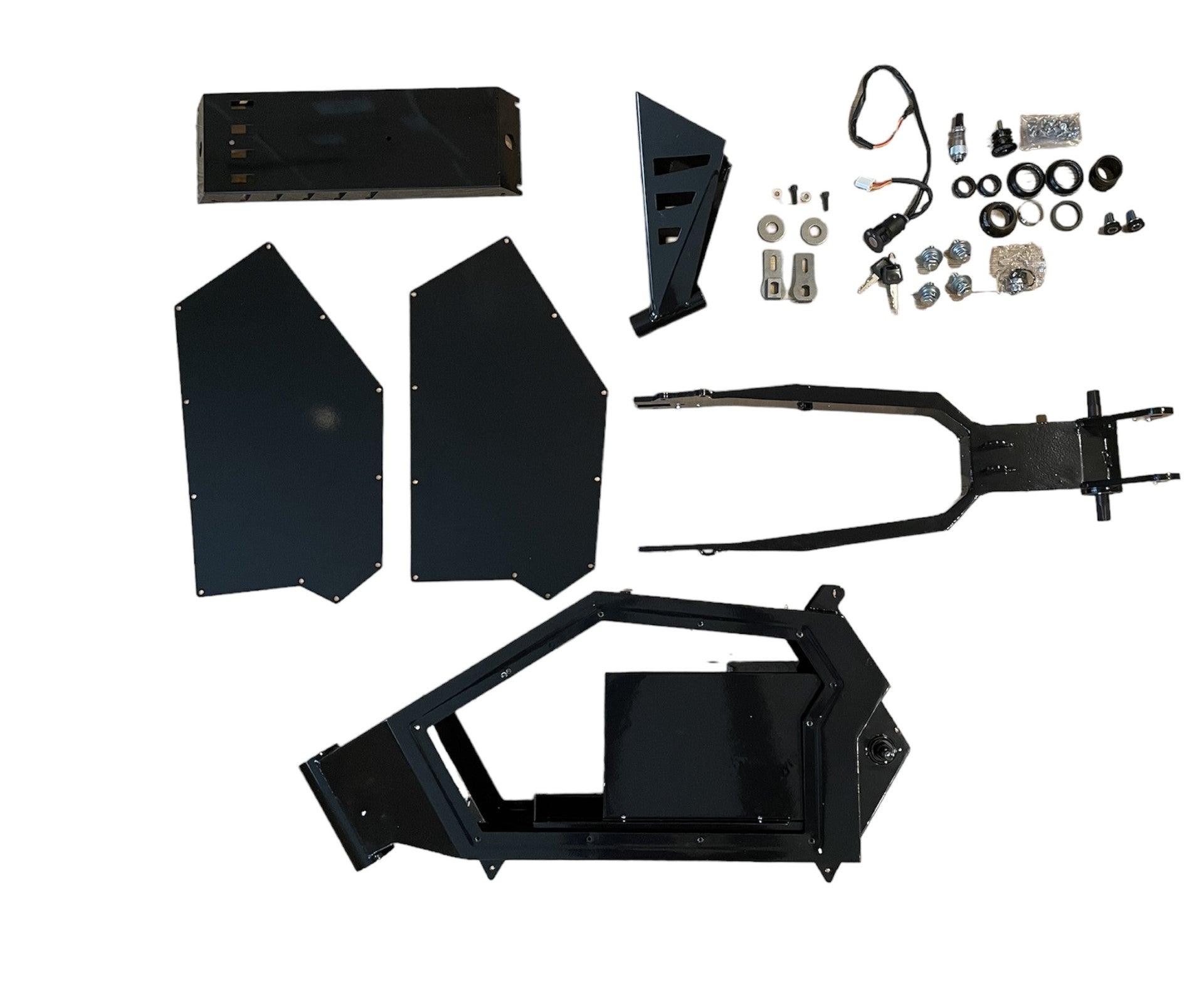

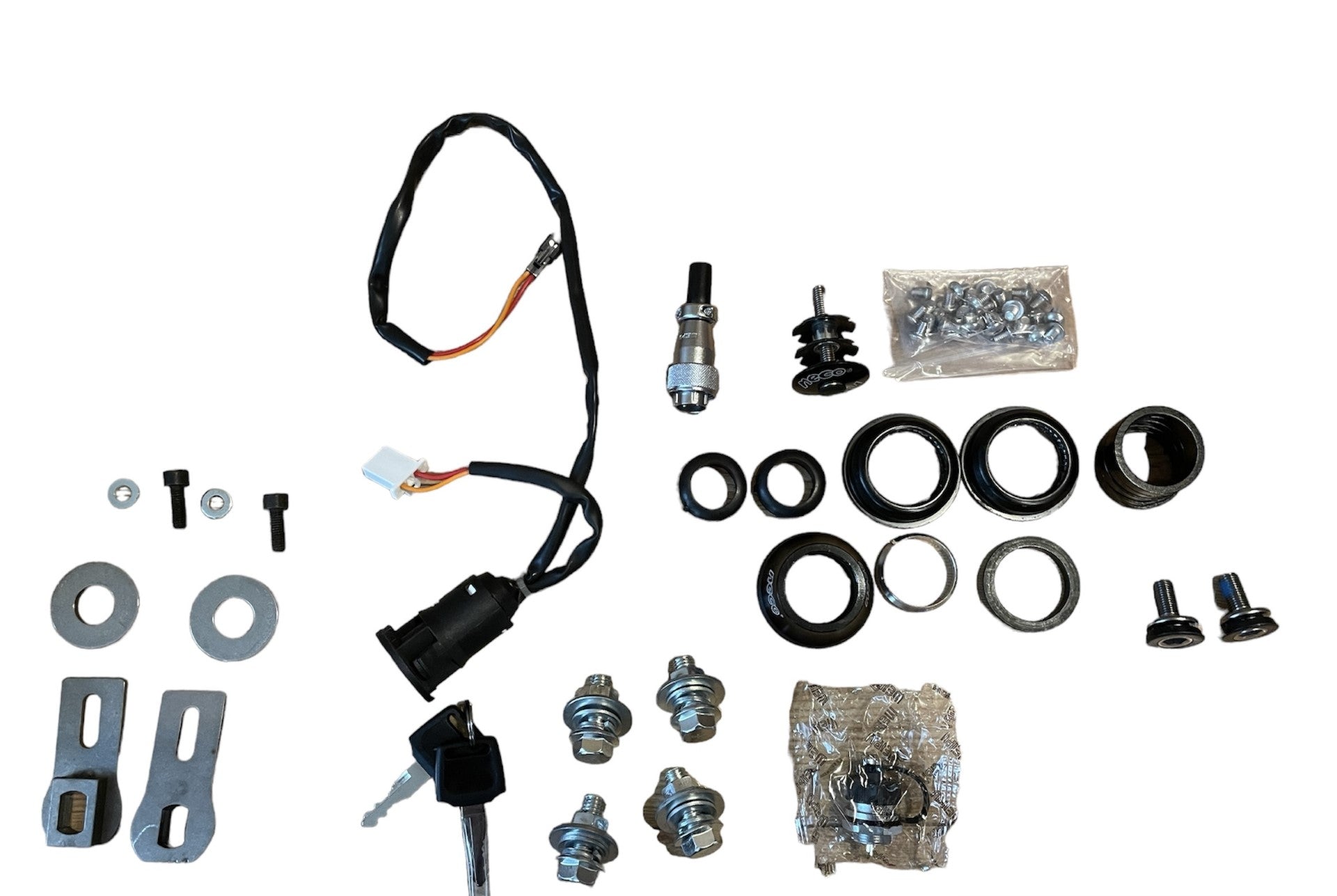

The Frame body, Saddle bracket，Controller box，Rear flat fork (including bottom bracket)，Battery casing，Head tube，Cover，Bolts and washers for assembling；

Features of the Product
Dropout：177 mm

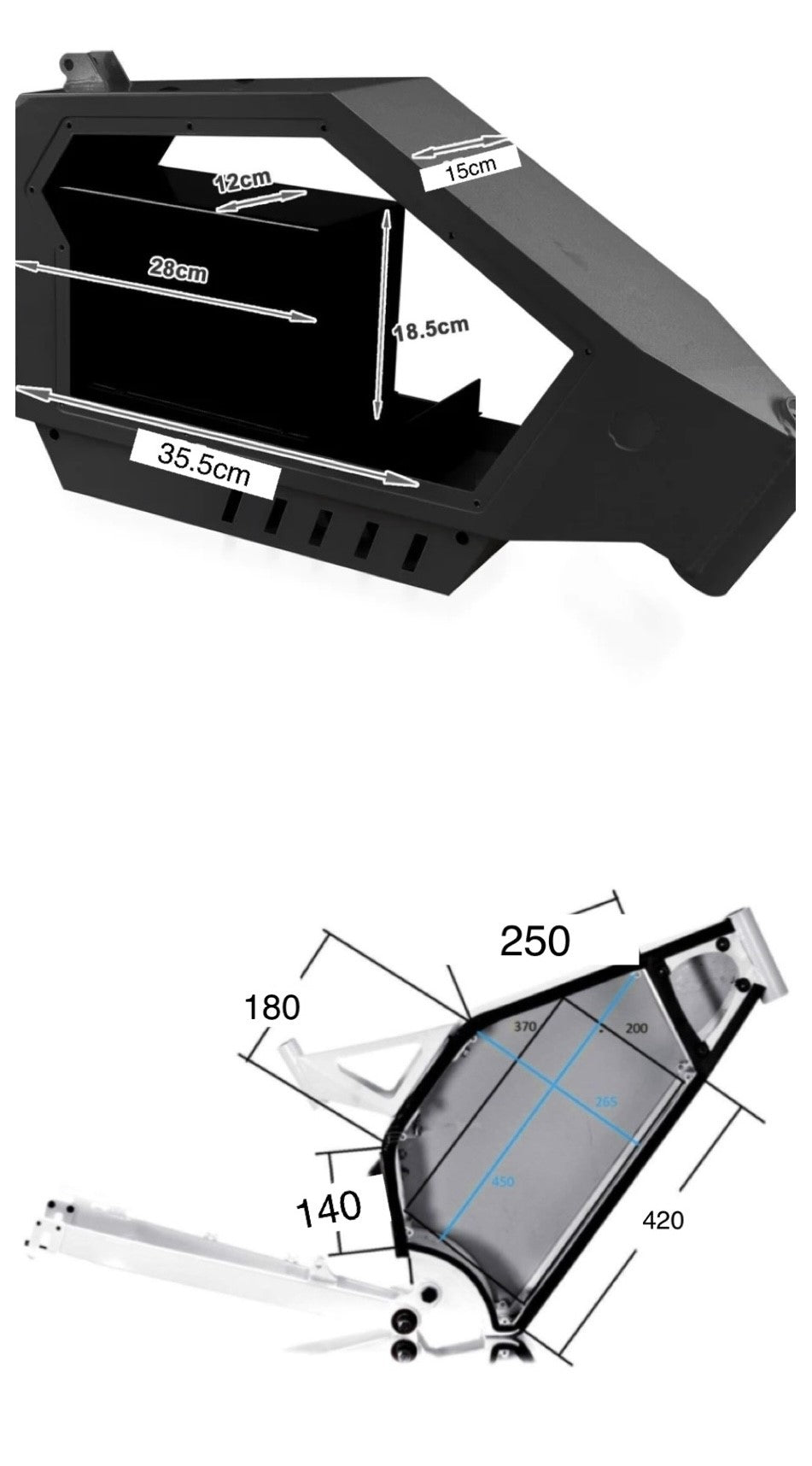

Battery casing: 14"x4.7"x 7.3"/ 35.5 x 12 x 18.5cm
Seat Post Size: 27mm diameter
Head tube Size: 35mm diameter
Net weight: 23KG
The rear shock absorber: cycling, the spacing of 200mm
Motor kit from 3000W to 5000W motor rear wheel.
Suitable Rim Size: 26x 4 inch
Note: Battery not included in package only Bike Frame kit.
